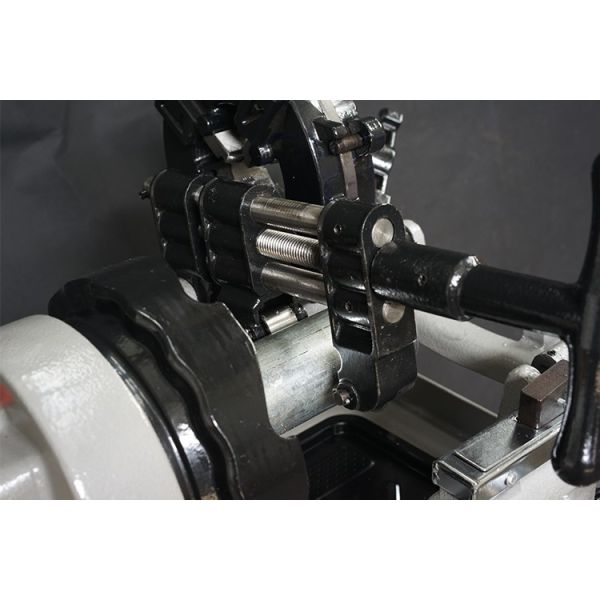

ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing

Name: ZT65BF Automatic Electric Pipe Threader 122 12 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing
Brand: SUNTECHMACH
Price: 300 USD

ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing Manufactures

Weight (Gross/Net) : 80 / 68 kg

Capacity : 1/2"-2 1/2" (DN65 Max)

Warranty : 1 Year

Motor Power : 1100W Copper Induction

Model : ZT-65BF

Product Name : Automatic electric pipe threader CE ZT-65BF 1/2 inch-2 1/2 inch pipe threading machine for sale

Scope of application : 1/2"-2 1/2''

Motor power : 1100W

Speed : 30 rpm

Thread type : BSPT 1/2''-3/4'', 1''- 2 1/2''

Package : 1wooden case/set

G.W/N.W. : 80/68KGS

Packing size : 70x48x54cm

Thread Type : BSPT 1/2"-3/4", 1"-2 1/2"

Certification : CE, ISO 9001

Die Head : Swift Open Type, Automatic Retraction

Packing Size : 700 × 480 × 540 mm

Brand Name : SUNTECHMACH

Model Number : ZT-65BF

Place of Origin : ZHEJIANG, CHINA

MOQ : 1 set

Price : USD300-350/SET

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 12000PCS/MONTH

Delivery Time : 30-35working days

Packaging Details : Wooden case

Contact Now

ZT-65BF Automatic Electric Pipe Threader — 1/2"-2 1/2" Capacity

1100W Copper Induction Motor · 30 RPM · Swift Open Die Head · CE & ISO Certified

⚡ 1100W Heavy-Duty Motor 📏 1/2"-2 1/2" DN65 Max 🏆 CE + ISO 9001 🔩 1-Year Warranty

🔍What Commercial Pipe Threading Challenges Look Like — And How ZT-65BF Handles Them

Contractor Concern	ZT-65BF Solution
Need to thread 2"+ pipe for fire protection and commercial plumbing	1/2" to 2 1/2" (DN65) capacity — handles everything from small residential to heavy commercial and fire sprinkler main lines in one machine.
Manual threading large pipe is physically impossible	1100W copper induction motor at 30 RPM with large-modulus oblique gear main shaft — super-large torque for effortless threading through heavy-wall steel pipe.
Set up and adjustments waste precious job time	Two-lever gear system with swift open type die head and automatic retraction. Switch between pipe sizes in seconds. No tools needed for die changes.
Pipe slips during threading, ruining the cut	Jagged hammer panel chuck design with thickened cast iron construction. Firm, non-slip clamping even on smooth galvanized pipe. One operator can clamp and release quickly.
Cutter wanders, threads not straight	Double guide post cutting knife system for accurate, perpendicular cuts every time. Precision-machined rails eliminate blade deflection under load.
Motor burns out on long production runs	Pure copper induction motor — superior heat dissipation and durability compared to aluminum-wound alternatives. Designed for continuous production shop use, not just occasional jobs.
No local service or support	CE & ISO 9001 certified with 1-year full warranty. Free spare parts for manufacturing defects. Commissioning service available with on-site technician support.

⚡Built for Professional Production — Not Just Occasional Use

⚙ Two-Lever Gear Transmission

High-efficiency dual-lever system delivers consistent torque across the full 1/2"-2 1/2" range. Smooth power transfer with minimal maintenance.

🔥 1100W Copper Induction Motor

Pure copper winding with superior thermal performance. Low noise, extended service life. Delivers full-dimension threads in a single pass — no re-cutting needed.

🔗 Swift Open Type Die Head

Standard collocation automatic retraction die head. Opens and closes rapidly for fast pipe changeover. Compatible with BSPT standard dies.

🔒 Jagged Hammer Panel Chuck

Unique gripping surface design prevents pipe rotation under high torque. Firm hold on steel, galvanized, and black iron pipe without marring the surface.

📏 Double Guide Post Cutter

Twin precision guide posts eliminate blade wobble. Accurate, clean cuts with every operation. Heavy-duty hardened blade for thousands of cuts.

⚖ Large Modulus Oblique Gear

Oversized main shaft gear delivers super-large torque without slipping. Designed for the high demands of continuous commercial production environments.

📦 Thickened Cast Iron Body

Heavy cast iron construction absorbs vibration for stable, accurate threading. 80kg gross weight provides rock-solid stability — no walking or shifting during operation.

🔃 Automatic Retraction System

Die head automatically retracts when threading is complete. Saves operator time and ensures consistent thread depth on every pipe. No manual measurement needed.

📊ZT-65BF vs. Standard Portable Threaders — Know the Difference

Feature	Portable 1/2"-1" Threader	ZT-65BF 1/2"-2 1/2" Machine
Max Capacity	🔴 1" only	🟢 2 1/2" (DN65)
Motor Power	🟡 650W	🟢 1100W copper
Construction	🟡 Mixed aluminum/steel	🟢 Cast iron body
Die Head	🟡 Manual change	🟢 Swift open auto-retract
Best For	Residential & light commercial	Fire protection, HVAC, industrial
Continuous Use	🔴 Limited duty cycle	🟢 Production-rated

💡 Ideal for These Professionals: Fire protection pipeline contractors · Commercial plumbing companies · HVAC mechanical rooms · Industrial plant maintenance · Pipe fabrication shops · Construction firms installing sprinkler systems, gas lines, and large-diameter water supply piping.

📐Technical Specifications

Model	ZT-65BF
Scope of Application	1/2" - 2 1/2" (DN65 Max)
Motor Power	1100W (Copper Induction)
Rotational Speed	30 RPM
Thread Type	BSPT 1/2"-3/4", 1"-2 1/2"
Die Head Model	Swift Open Type (Automatic Retraction)
Gross / Net Weight	80 / 68 kg
Packing Dimensions	700 x 480 x 540 mm
Certification	CE, ISO 9001
Warranty	1 Year

📚Operation Process & Quality Details

ZT-65BF Automatic Electric Pipe Threader 1/2-2 1/2 Inch 1100W 30RPM CE ISO Heavy Duty Threading Machine for Plumbing

The details determine quality — from gearbox to chuck, every component built for production duty

❓FAQ

Q: What is the minimum order quantity?: A: 1 set for trial evaluation. Recommended order amount above USD 2,000 for cost-effective sea shipping.
Q: What payment terms do you accept?: A: 30% T/T deposit upfront, 70% balance before shipment. T/T, Western Union, MoneyGram accepted.
Q: How long is delivery?: A: Approximately 7 days after receipt of formal order and 30% deposit. Shipping time varies by destination.
Q: Do you offer commissioning service?: A: Yes, on-site commissioning available. Buyer covers travel expenses for technician deployment.
Q: What about warranty and broken parts?: A: 12-month full warranty. Free replacement for quality-related broken parts during warranty period.
Q: What is the packaging?: A: Fumigation-free plywood case — one wooden case per set for maximum protection during transit.
Q: Can you customize voltage?: A: Yes, motor voltage and frequency can be customized to match your local power standard.

🌐 Supply Capacity: 12,000 sets per month from our Zhejiang factory. FOB Shanghai/Ningbo. Professional plumbing tools supplier serving North America, Europe, Middle East markets. Multi-language communication support available.

🚀 From 1/2" to 2 1/2" — One Machine Handles It All

ZT-65BF Automatic Electric Pipe Threader. 1100W. 30RPM. CE & ISO Certified. Inquire for wholesale pricing and shipping options today.
